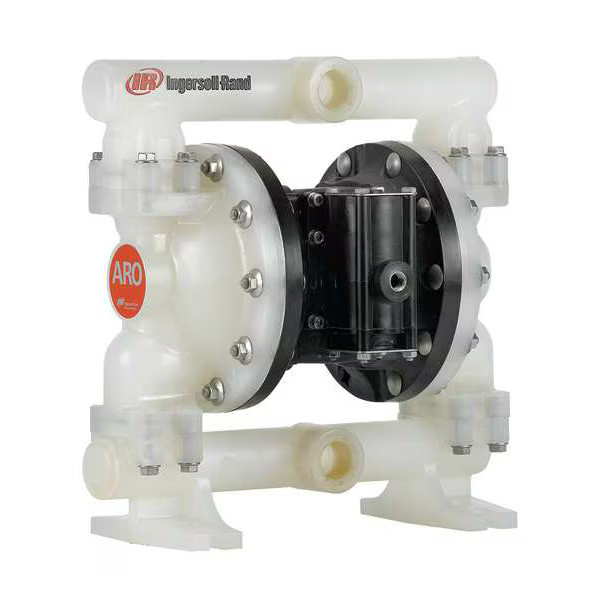

1" ARO Air Operated Double Diaphragm Pump, PD10P-APS-PTT

PD10P-APS-PTT ARO 1" Polypropylene Non-Metallic Expert Series Air Operated Double Diaphragm Pump

ARO
SKU:
PD10P-APS-PTT
|
UPC:
15203375
Availability:
IN STOCK
$1,726.77
$1,801.00
(You save $74.23 )
(No reviews yet)
Condition:
New
Current Stock:
Adding to cart… The item has been added
Description

P/N PD10P-APS-PTT ARO 1" Polypropylene Non-Metallic Expert Series Air Operated Double Diaphragm Pump

The ARO PD10P-APS-PTT is a 1-inch Non-Metallic Expert Series air-operated double-diaphragm pump engineered for high-volume delivery even at low air pressure, backed by a broad range of material compatibility options. Featuring a polypropylene center body, fluid caps, and polypropylene seats paired with durable PTFE check balls, PTFE diaphragms, and stainless steel hardware, it offers exceptional chemical resistance.

Built for reliable pneumatic operation, this pump features ARO's patented SimulShift™ "unstallable" air valve and Quick Dump™ exhaust technology to eliminate stalling and prevent cold-weather freezing. Its bolted construction ensures leak-free fluid containment and simplified field maintenance, making it well suited for chemical transfer, water treatment, and general industrial applications.

Application suitability should be confirmed based on fluid chemical compatibility, operating temperature, viscosity, and process conditions.

Operator's Manual - CCN 15206378

Sales and Engineering Data - CCN 15207764

ARO Expert and Compact Series Air Operated Diaphragm Pumps

Air Exhaust 3/4"-14 NPT (female)
Air Inlet 1/4"-18 NPT (female)
Ball Material PTFE
Center Body Material Polypropylene
Diaphragm Material PTFE
Displacement / Cycle @ 100 psig 0.226 gal (0.86 L)
Fluid Cap / Manifold Material Polypropylene
Hardware Material Stainless Steel
Material Inlet / Outlet 1" NPTF-1 (female)
Maximum Air Inlet Pressure 120 psig (8.3 bar)
Maximum Dry Suction Lift 19 ft (5.7 m)
Maximum Flow Rate (Flooded Inlet) 53.0 GPM (200.6 LPM)
Maximum Material Inlet Pressure 10 psig (0.69 bar)
Maximum Operating Temperature 40° to 175°F (4° to 79°C) (limited by Polypropylene and PTFE specs)
Maximum Outlet Pressure 120 psig (8.3 bar)
Maximum Particle Size / Max Solids 1/8" dia. (3.3 mm)
Mounting Dimension 5.032" × 10.050" (127.8 × 255.3 mm)
Noise Level @ 70 psig, 60 cpm 79.7 dB(A)
Product Series Expert Series / Non-Metallic
Ratio 1:1
Seat Material Polypropylene
Weight 19.35 lbs (8.78 kgs)



Warranty
5 YEAR WARRANTY
