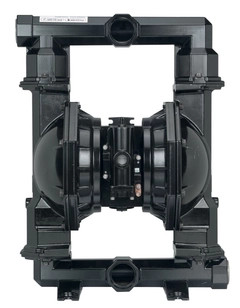

PD20A-AAP-FGG-B ARO 2" Aluminum Metallic Expert Series Air Operated Double Diaphragm Pump

PD20A-AAP-FGG-B ARO 2" Aluminum Metallic Expert Series Air Operated Double Diaphragm Pump

ARO
SKU:
PD20A-AAP-FGG-B
Availability:
IN STOCK
$2,621.59
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

P/N PD20A-AAP-FGG-B ARO 2" Aluminum Metallic Expert Series Air Operated Double Diaphragm Pump

The ARO PD20A-AAP-FGG-B is a 2-inch Metallic Expert Series air-operated double-diaphragm pump engineered for high-volume, dependable fluid handling in demanding industrial and utility applications. Featuring an all-aluminum casing paired with carbon steel hardware, aluminum valve seats, Nitrile valve balls, and Nitrile diaphragms, it provides robust performance for petroleum and oil-based fluid transfers.

Built for reliable pneumatic operation, this pump features ARO's patented SimulShift™ "unstallable" air valve and Quick Dump™ exhaust technology to eliminate stalling and prevent cold-weather freezing. Its bolted construction ensures leak-free fluid containment and simplified field maintenance, making it well suited for industrial fluid transfer, circulation, filling, batching, fuel handling, and pumping compatible fluids with small suspended solids.

Application suitability should be confirmed based on fluid chemical compatibility, operating temperature, viscosity, and process conditions. Note: Aluminum-wetted models are not suitable for use with halogenated hydrocarbon solvents or food products intended for human consumption.

Operator's Manual - 15226509

Sales and Engineering Data - 15227721

ARO Expert and Compact Series Air Operated Diaphragm Pump

Air Exhaust 1-1/2 - 11-1/2 NPT
Air Inlet 3/4 - 14 NPTF - 1
Ball Material Nitrile
Center Body Material (Air Motor / Air Cap) Aluminum
Diaphragm Material Nitrile
Displacement / Cycle @ 100 psig 1.4 gal (5.3 L)
Fluid Cap / Manifold Material Aluminum
Hardware Material Carbon Steel
Material Inlet / Outlet 2 - 11-1/2 NPTF - 1
Maximum Air Inlet Pressure 120 psig (8.3 bar)
Maximum Dry Suction Lift 14 ft (4.2 m)
Maximum Flow Rate (Flooded Inlet) 172 gpm (651 L/min)
Maximum Material Inlet Pressure 10 psig (0.69 bar)
Maximum Operating Temperature 10 °–180 °F (-12 °–82 °C) (limited by Nitrile specs)
Maximum Outlet Pressure 120 psig (8.3 bar)
Maximum Particle Size / Max Solids 1/4" dia. (6.4 mm)
Mounting Dimension 9.062" × 13.250" (230.2 × 336.6 mm)
Noise Level @ 70 psig, 60 cpm 85.0 dB(A)
Product Series Expert Series / Metallic
Ratio 1:1
Seat Material Aluminum
Weight 91.5 lbs (41.5 kgs)
ACCESSORIES:
FLUID END SERVICE KIT (GEOLAST®) 2" 637309-GG
VALVE SEAT ALUMINUM 95673
AIR END SERVICE KIT (EXP/METALLIC) 637421
ARO 2000 SERIES PIGGYBACK P39354-600
