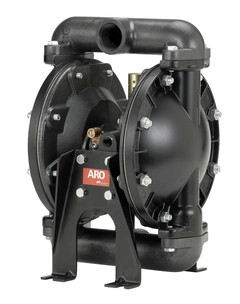

666100-244-C ARO 1" Aluminum Metallic Pro Series Air Operated Double Diaphragm Pump
P/N 666100-244-C ARO 1" Aluminum Metallic Pro Series Air Operated Double Diaphragm Pump
The ARO 666100-244-C is a metallic Pro Series 1-inch air-operated double-diaphragm pump designed for dependable fluid transfer in industrial and process applications. Its durable aluminum construction, combined with PTFE / Santoprene® diaphragms, PTFE check balls, and 316 stainless steel seats, provides maximum chemical resistance and durability for handling aggressive fluids, industrial chemicals, and demanding process applications.
The single-manifold design offers a compact, streamlined configuration, while the bolted, seal-less construction supports reliable pneumatic operation and convenient maintenance. This pump is well suited for fluid transfer, circulation, batching, and other applications requiring dependable performance and ease of service.
Application suitability should be confirmed based on the specific fluid, concentration, temperature, chemical compatibility, solids content, and operating conditions.
ARO Compact and Pro Series Diaphragm Pumps
| Air Inlet (Female) | 1/4 - 18 NPTF - 1 |
| Air Exhaust | 3/8 - 18 NPTF - 1 |
| Ball Material | PTFE |
| Center Body Material | Aluminum, N.P.T.F. |
| Diaphragm Material | PTFE/Santoprene |
| Displacement / Cycle @ 100 psi | 0.16 gal (.60 lit) |
| Fluid Cap / Manifold Material | Aluminum, Single |
| Material Inlet / Outlet (Female) | 1 - 11-1/2 N.P.T.F. - 1 |
| Maximum Air Inlet Pressure | 120 psig (8.3) |
| Maximum Dry Suction Lift | 20 ft (6.1 m) |
| Maximum Flow Rate (Flooded Inlet) | 35 gpm (133 lpm) |
| Maximum Material Inlet Pressure | 10 psig (0.69 bar) |
| Maximum Outlet Pressure | 120 psig (8.3 bar) |
| Maximum Operating Temperature | 40 ° to 225 °F (4 ° to 107 °C) (limited by PTFE specs) |
| Maximum Particle Size / Max Solids | 1/8" (3.2 mm) |
| Noise Level @ 70 psi, 60cpm | 78.3 dB(A) |
| Product Series | Pro Series / Metallic |
| Ratio | 1:1 |
| Seat Material | 316 Stainless Steel |
| Weight | 19 lbs (8.62 kgs) |
| ACCESSORIES: | |
| FLUID END SERVICE KIT 1" | 637119-44-C |
| VALVE SEAT STAINLESS STEEL | 90428-1 |
| AIR SECTION SERVICE KIT | 637118-C |
| ARO 1500 SERIES PIGGYBACK | P39224-600 |
