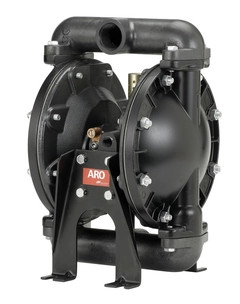

666100-362-C ARO 1" Aluminum Metallic Pro Series Air Operated Double Diaphragm Pump
P/N 666100-362-C ARO 1" Aluminum Metallic Pro Series Air Operated Double Diaphragm Pump
The ARO 666100-362-C is a metallic Pro Series 1-inch air-operated double-diaphragm pump designed for dependable fluid transfer in industrial and process applications. Its aluminum construction, combined with Nitrile diaphragms, Acetal valve balls, and polypropylene seats, provides a durable fluid-handling configuration for a variety of applications.
The single-manifold design provides a compact configuration, while ARO describes the bolted construction as supporting “leak-free fluid handling.” Accessible ball checks and fluid caps also help simplify routine service and maintenance. Its 1-inch design supports common transfer, circulation, filling, and batching duties across industrial, chemical, petrochemical, construction, and other process environments.
Application suitability should be confirmed based on the specific fluid, temperature, viscosity, chemical compatibility, solids content, and operating conditions.
Operator's Manual - CCN 81376642
ARO Compact and Pro Series Diaphragm Pumps
| Air Exhaust (Female) | 3/8 - 18 NPTF-1 |
| Air Inlet (Female) | 1/4 - 18 NPTF - 1 |
| Air Supply Filtration Requirement | 50 microns max |
| Ball Material | Acetal |
| Center Body Material | Aluminum, NPTF |
| Diaphragm Material | Nitrile |
| Displacement / Cycle @ 100 psig | 0.16 gal (0.60 L) |
| Fluid Cap / Manifold Material | Aluminum, Single |
| Material Inlet / Outlet (Female) | 1 - 11-1/2 NPTF - 1 |
| Maximum Air Inlet Pressure | 120 psig (8.3 bar) |
| Maximum Dry Suction Lift | 20 ft (6.1 m) |
| Maximum Flow Rate (Flooded Inlet) | 35 gpm (133 lpm) |
| Maximum Material Inlet Pressure | 10 psig (0.69 bar) |
| Maximum Outlet Pressure | 120 psig (8.3 bar) |
| Maximum Temperature Limits | 32°–175°F (0°–79°C) (limited by Polypropylene) |
| Maximum Particle Size / Max Solids | 1/8" dia. (3.2 mm) |
| Muffler | Integral |
| Noise Level @ 70 psig, 60 cpm | 78.3 dB(A) |
| Product Series | Pro Series / Metallic |
| Ratio | 1:1 |
| Seat Material | Polypropylene |
| Weight | 19 lb (8.62 kg) |
| ACCESSORIES / SERVICE: | |
| Air Line Connection Kit | 66073-2 |
| Air Section Service Kit | 637118-C |
| Filter / Regulator - 1/4" NPT | P39224-600 |
| Fluid Section Service Kit (Without Seats) | 637119-62-C |
| Valve Seat - Polypropylene | 92926 |
| Wall Mount | 66100 |
