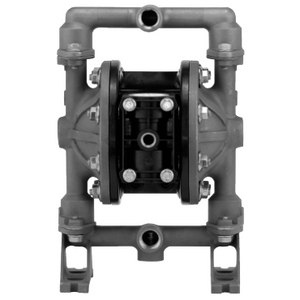

PD05A-ASS-STT-B ARO 1/2" Stainless Steel Metallic Compact Series Air Operated Double Diaphragm Pump
ARO
$2,411.26
(No reviews yet)
Write a Review
ARO
PD05A-ASS-STT-B ARO 1/2" Stainless Steel Metallic Compact Series Air Operated Double Diaphragm Pump
P/N PD05A-ASS-STT-B ARO 1/2" Stainless Steel Metallic Compact Series Air Operated Double Diaphragm Pump
The ARO PD05A-ASS-STT-B is a metallic Compact Series 1/2-inch air-operated double-diaphragm pump designed for dependable fluid transfer in industrial and process applications. Its aluminum center body with stainless-steel fluid caps and manifold, combined with PTFE diaphragms, PTFE check balls, and 316 stainless-steel seats, provides a durable fluid-handling configuration for a variety of applications.
The compact design is well suited for installations where space is limited, while the bolted, seal-less construction supports reliable pneumatic operation and convenient serviceability. This pump is well suited for fluid transfer, circulation, dispensing, and other applications where compact size, versatility, and ease of maintenance are important.
Application suitability should be confirmed based on the specific fluid, concentration, temperature, viscosity, chemical compatibility, solids content, and operating conditions.
Operator's Manual - CCN 15250384
Sales & Engineering Data Sheet - CCN 15256530
ARO Compact and Pro Series Diaphragm Pumps
| Air Consumption @ 40 psig | 1 cfm / gallon (approx.) |
| Air Exhaust | 3/8 - 18 NPTF - 1 |
| Air Inlet | 1/4 - 18 NPTF - 1 |
| Air Supply Filtration Requirement | 50 microns max. |
| Ball Material | PTFE |
| Center Body Material | Aluminum |
| Diaphragm Material | PTFE |
| Displacement / Cycle @ 100 psig | 0.039 gal (0.15 L) |
| Fluid Cap / Manifold Material | Stainless Steel |
| Hardware Material | Stainless Steel |
| Material Inlet / Outlet (Female) | 1/2 - 14 NPTF - 1 |
| Maximum Air Inlet Pressure | 100 psig (6.9 bar) |
| Maximum Dry Suction Lift | 15 ft (4.5 m) |
| Maximum Flow Rate (Flooded Inlet) | 12.0 gpm (45.4 lpm) |
| Maximum Material Inlet Pressure | 10 psig (0.69 bar) |
| Maximum Outlet Pressure | 100 psig (6.9 bar) |
| Maximum Particle Size / Max Solids | 3/32" dia. (2.4 mm) |
| Maximum Temperature Limits | 40°–225°F (4°–107°C) (limited by PTFE) |
| Muffler | Integral |
| Noise Level @ 70 psig, 60 cpm | 75.0 dB(A) |
| Product Series | Compact Series / Metallic |
| Ratio | 1:1 |
| Seat Material | 316 Stainless Steel |
| Weight | 16.57 lb (7.52 kg) |
| ACCESSORIES / SERVICE: | |
| Air Line Connection Kit | 66073-1 |
| Air Section Service Kit | 637428 |
| Filter / Regulator - 1/4" NPT | P39124-600 |
| Fluid Section Service Kit (Without Seats) | 637427-TT |
| Ported Exhaust Kit | 637438 |
| Valve Seat - 316 Stainless Steel | 93409-1 |
| Wall Mount Bracket Kit | 76763 |
