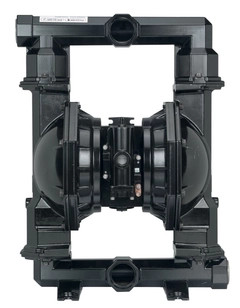

PD20S-FSS-STT-B ARO 2" Stainless Steel Metallic Expert Series Air Operated Double Diaphragm Pump
ARO
$10,816.16
(No reviews yet)
Write a Review
ARO
PD20S-FSS-STT-B ARO 2" Stainless Steel Metallic Expert Series Air Operated Double Diaphragm Pump
P/N PD20S-FSS-STT-B ARO 2" Stainless Steel Metallic Expert Series Air Operated Double Diaphragm Pump
The ARO PD20S-FSS-STT-B is a metallic Expert Series 2-inch air-operated double-diaphragm pump designed for dependable, high-volume fluid delivery even at low air pressure. Its stainless steel air motor section, fluid caps, manifold, and hardware, combined with 316 stainless steel seats, PTFE valve balls, and PTFE diaphragms with Santoprene® backup, provide a durable fluid-handling configuration for demanding industrial and process applications.
Built for reliable pneumatic operation, the Expert Series design incorporates ARO's patented SimulShift™ air valve technology to help avoid stalling and Quick Dump™ check valves that divert cold exhaust air away from ice-prone components to help reduce freezing and downtime. Its bolted construction and serviceable air and fluid sections support dependable operation and convenient maintenance, making the pump well suited for fluid transfer, filling, recirculation, batching, and other industrial process applications.
Application suitability should be confirmed based on the specific fluid, concentration, temperature, viscosity, chemical compatibility, solids content, and operating conditions. Maximum temperature limits are based on mechanical stress only, and certain chemicals can significantly reduce the maximum safe operating temperature.
Operator's Manual - CCN 15226509
Sales and Engineering Data - CCN 15227721
ARO Expert and Compact Series Air Operated Diaphragm Pumps
| Air Exhaust (Female) | 1-1/2 - 11-1/2 NPT |
| Air Inlet (Female) | 3/4 - 14 NPTF - 1 |
| Air Supply Filtration Requirement | 50 microns max |
| Ball Material | PTFE |
| Center Body Material (Air Motor / Air Cap) | Stainless Steel |
| Diaphragm Material | PTFE / Santoprene® |
| Displacement / Cycle @ 100 psig | 1.4 gal (5.3 L) |
| Fluid Cap / Manifold Material | Stainless Steel |
| Hardware Material | Stainless Steel |
| Material Inlet / Outlet | 2" ANSI / DIN Flange |
| Maximum Air Inlet Pressure | 120 psig (8.3 bar) |
| Maximum Dry Suction Lift | 14 ft (4.2 m) |
| Maximum Flow Rate (Flooded Inlet) | 172 gpm (651 lpm) |
| Maximum Material Inlet Pressure | 10 psig (0.69 bar) |
| Maximum Outlet Pressure | 120 psig (8.3 bar) |
| Maximum Particle Size / Max Solids | 1/4" dia. (6.4 mm) |
| Maximum Temperature Limits | 40°–225°F (4°–107°C) (limited by PTFE) |
| Noise Level @ 70 psig, 60 cpm | 85.0 dB(A) |
| Product Series | Expert Series / Metallic |
| Ratio | 1:1 |
| Seat Material | 316 Stainless Steel |
| Weight | 190.9 lb (86.6 kg) [Includes base weight of 162.0 lb (73.5 kg) plus 28.9 lb (13.1 kg) added for stainless steel air motor section] |
| ACCESSORIES / SERVICE: | |
| Air Line Connection Kit | 66312 |
| Air Section Service Kit | 637421 |
| Continuous Muffler | 67263 |
| Fluid Section Service Kit (Without Seats) | 637309-TT |
| Major Air Valve Assembly | 637374-4 |
| Valve Seat - 316 Stainless Steel | 94353 |
