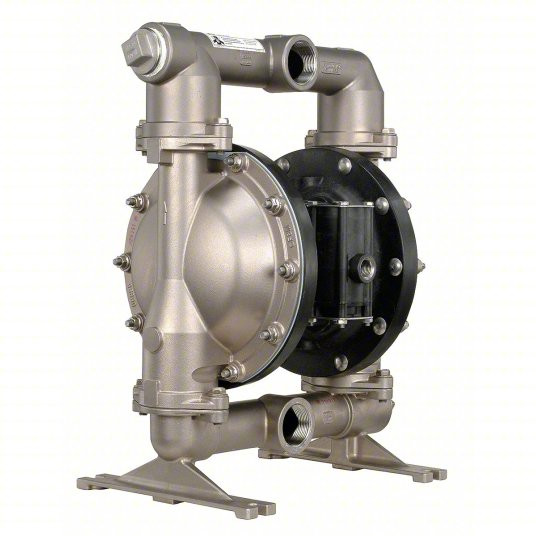

PD30A-ASS-STT-C ARO 3" Stainless Steel Metallic Expert Series Air Operated Double Diaphragm Pump
P/N PD30A-ASS-STT-C ARO 3" Stainless Steel Metallic Expert Series Air Operated Double Diaphragm Pump
The ARO PD30A-ASS-STT-C is a 3-inch metallic Expert Series air-operated double-diaphragm pump designed for dependable, high-volume fluid transfer in industrial, chemical, and demanding fluid-handling applications. Featuring a durable aluminum air motor combined with corrosion-resistant stainless steel wetted components, PTFE valve balls, PTFE / Santoprene® diaphragms, and stainless steel valve seats, it provides exceptional chemical compatibility and structural strength for handling aggressive fluids.
Built for reliable pneumatic operation, this pump features ARO's patented SimulShift™ "unstallable" air valve and Quick Dump™ exhaust technology to eliminate stalling and prevent cold-weather freezing. Its bolted, stall-resistant construction supports reliable, leak-resistant operation and convenient serviceability, offering high-volume delivery even at low air pressure. This pump is well-suited for chemical transfer, processing, recirculation, batching, and other operations where dependable performance and corrosion resistance are essential.
Application suitability should be confirmed based on the specific fluid, temperature, viscosity, chemical compatibility, solids content, and operating conditions.
Operator's Manual — CCN 15227648
Sales and Engineering Data - CCN 15227747
ARO Expert and Compact Series Air Operated Diaphragm Pumps
| Air Exhaust | 1-1/2"-11-1/2 NPT |
| Air Inlet | 3/4"-14 NPTF-1 |
| Air Supply Filtration Requirement | 50 microns max (recommended air line filter) |
| Ball Material | PTFE |
| Center Body Material | Aluminum |
| Diaphragm Material | PTFE / Santoprene® |
| Displacement / Cycle @ 100 psig | 2.8 gal (10.6 lit) |
| Fluid Cap / Manifold Material | Stainless Steel |
| Hardware Material | Stainless Steel |
| Material Inlet / Outlet | 3 - 8 NPTF - 1 |
| Maximum Air Inlet Pressure | 120 psig (8.3 bar) |
| Maximum Dry Suction Lift | 14 ft (4.2 m) |
| Maximum Flow Rate (Flooded Inlet) | 275 gpm (1041 lpm) |
| Maximum Material Inlet Pressure | 10 psig (0.69 bar) |
| Maximum Operating Temperature | 40 ° to 225 °F (4 ° to 107 °C) (limited by PTFE / Santoprene® specs) |
| Maximum Outlet Pressure | 120 psig (8.3 bar) |
| Maximum Particle Size / Max Solids | 3/8” dia (9.5 mm) |
| Mounting Dimension | 10-5/32” x 12-1/16” (258 mm x 306 mm) |
| Noise Level @ 70 psig, 50 cpm | 83.0 dB(A) |
| Product Series | Expert Series / Metallic |
| Ratio | 1:1 |
| Seat Material | Stainless Steel |
| Weight | 228.8 lbs (103.8 kgs) |
| ACCESSORIES: | |
| FLUID END SERVICE KIT (TEFLON®) 3" | 637303-TT |
| VALVE SEAT 316SS | 94113 |
| AIR END SERVICE KIT (EXP/METALLIC) | 637421 |
| ARO SERIES 3000 3/4 FILTER/REGULATOR 5 | P39454-614 |
