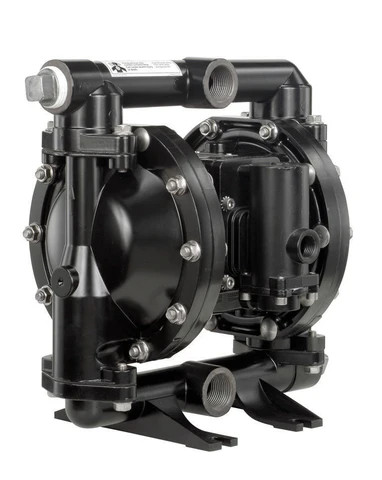

PD10A-AAP-GGG ARO 1" Aluminum Metallic Expert Series Air Operated Double Diaphragm Pump
P/N PD10A-AAP-GGG ARO 1" Aluminum Metallic Expert Series Air Operated Double Diaphragm Pump
The ARO PD10A-AAP-GGG is a metallic Expert Series 1-inch air-operated double-diaphragm pump designed for dependable fluid transfer in industrial and process applications. Its aluminum center body, fluid caps, and manifold with plated-steel hardware, combined with Nitrile diaphragms, Nitrile check balls, and Nitrile seats, provide a durable fluid-handling configuration for a variety of applications.
Built for reliable pneumatic operation, the Expert Series design incorporates ARO's patented SimulShift™ air valve technology to help avoid stalling and Quick Dump™ check valves that divert cold exhaust air away from ice-prone components to help reduce freezing and downtime. Its bolted construction supports secure fluid containment and convenient serviceability, making the pump well suited for fluid transfer, circulation, dispensing, and other industrial process applications.
Application suitability should be confirmed based on the specific fluid, concentration, temperature, viscosity, chemical compatibility, solids content, and operating conditions. Aluminum-wetted models should not be used with halogenated hydrocarbon solvents that may react with aluminum or with food products intended for human consumption.
Operator's Manual - CCN 15207657
Sales and Engineering Data - CCN 15207772
ARO Expert and Compact Series Air Operated Diaphragm Pumps
| Air Exhaust (Female) | 3/4 - 14 NPT |
| Air Inlet (Female) | 1/4 - 18 NPT |
| Air Supply Filtration Requirement | 50 microns max. |
| Ball Material | Nitrile |
| Center Body Material | Aluminum |
| Diaphragm Material | Nitrile |
| Displacement / Cycle @ 100 psig | 0.232 gal (0.88 L) |
| Fluid Cap / Manifold Material | Aluminum |
| Hardware Material | Plated Steel |
| Material Inlet / Outlet (Female) | 1 - 11-1/2 NPTF - 2 |
| Maximum Air Inlet Pressure | 120 psig (8.3 bar) |
| Maximum Dry Suction Lift | 19 ft (5.7 m) |
| Maximum Flow Rate (Flooded Inlet) | 52.2 gpm (197.6 lpm) |
| Maximum Material Inlet Pressure | 10 psig (0.69 bar) |
| Maximum Outlet Pressure | 120 psig (8.3 bar) |
| Maximum Particle Size / Max Solids | 1/8" dia. (3.3 mm) |
| Maximum Temperature Limits | 10°–180°F (-12°–82°C) |
| Muffler | 350-568 |
| Noise Level @ 70 psig, 60 cpm | 80.6 dB(A) |
| Product Series | Expert Series / Metallic |
| Ratio | 1:1 |
| Seat Material | Nitrile |
| Weight | 25.35 lb (11.50 kg) — includes 4.65 lb (2.11 kg) aluminum air motor section |
| ACCESSORIES / SERVICE: | |
| Air Line Connection Kit | 66073-2 |
| Air Section Service Kit | 637397 |
| Filter / Regulator - 1/4" NPT | P39224-600 |
| Fluid Section Service Kit (Without Seats) | 637401-GG |
| Major Air Valve Assembly | 637395-3 |
| Valve Seat - Nitrile | 96152-G |
5 YEAR WARRANTY
