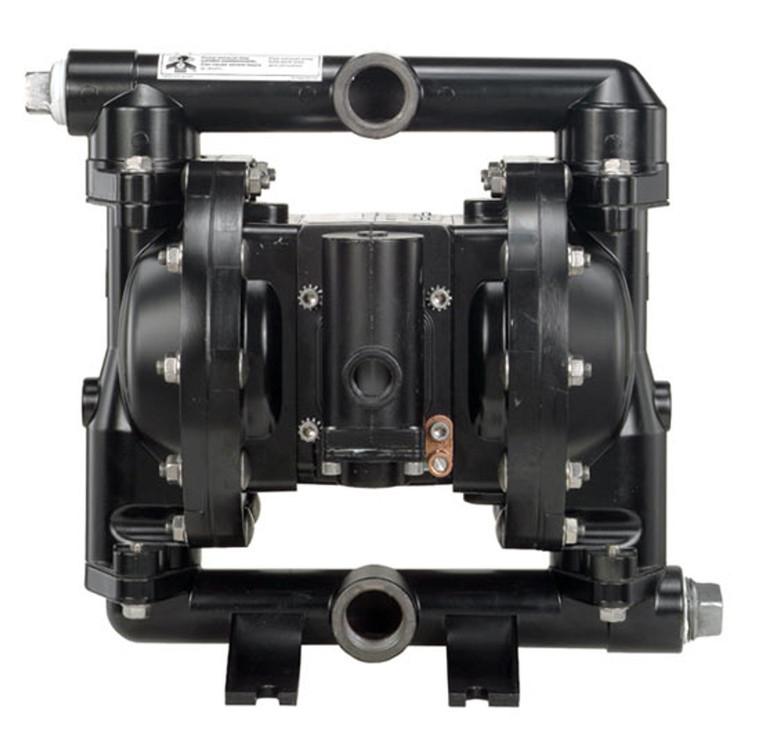

1" ARO Air Operated Double Diaphragm Pump, PD10A-AAP-CCC

PD10A-AAP-CCC ARO 1" Aluminum Metallic Expert Series Air Operated Double Diaphragm Pump

ARO
SKU:
PD10A-AAP-CCC
|
UPC:
663023141800
Availability:
IN STOCK
$1,569.02
(No reviews yet)
Condition:
New
Current Stock:
Adding to cart… The item has been added
Description

P/N PD10A-AAP-CCC ARO 1" Aluminum Metallic Expert Series Air Operated Double Diaphragm Pump

The ARO PD10A-AAP-CCC is a metallic Expert Series 1-inch air-operated double-diaphragm pump designed for dependable fluid transfer in industrial and process applications. Its aluminum center body, fluid caps, and manifold with plated-steel hardware, combined with Hytrel® diaphragms, Hytrel® check balls, and Hytrel® seats, provide a durable fluid-handling configuration for a variety of applications.

Built for reliable pneumatic operation, the Expert Series design incorporates ARO's patented SimulShift™ air valve technology to help avoid stalling and Quick Dump™ check valves that divert cold exhaust air away from ice-prone components to help reduce freezing and downtime. Its bolted construction supports secure fluid containment and convenient serviceability, making the pump well suited for fluid transfer, circulation, dispensing, and other industrial process applications.

Application suitability should be confirmed based on the specific fluid, concentration, temperature, viscosity, chemical compatibility, solids content, and operating conditions. Aluminum-wetted models should not be used with halogenated hydrocarbon solvents that may react with aluminum or with food products intended for human consumption.

Operator's Manual - CCN 15207657

Sales and Engineering Data - CCN 15207772

ARO Expert and Compact Series Air Operated Diaphragm Pumps

Air Exhaust (Female) 3/4 - 14 NPT
Air Inlet (Female) 1/4 - 18 NPT
Air Supply Filtration Requirement 50 microns max.
Ball Material Hytrel®
Center Body Material Aluminum
Diaphragm Material Hytrel®
Displacement / Cycle @ 100 psig 0.232 gal (0.88 L)
Fluid Cap / Manifold Material Aluminum
Hardware Material Plated Steel
Material Inlet / Outlet (Female) 1 - 11-1/2 NPTF - 2
Maximum Air Inlet Pressure 120 psig (8.3 bar)
Maximum Dry Suction Lift 19 ft (5.7 m)
Maximum Flow Rate (Flooded Inlet) 52.2 gpm (197.6 lpm)
Maximum Material Inlet Pressure 10 psig (0.69 bar)
Maximum Outlet Pressure 120 psig (8.3 bar)
Maximum Particle Size / Max Solids 1/8" dia. (3.3 mm)
Maximum Temperature Limits -20°–180°F (-29°–82°C)
Muffler 350-568
Noise Level @ 70 psig, 60 cpm 80.6 dB(A)
Product Series Expert Series / Metallic
Ratio 1:1
Seat Material Hytrel®
Weight 25.35 lb (11.50 kg) — includes 4.65 lb (2.11 kg) aluminum air motor section
ACCESSORIES / SERVICE:
Air Line Connection Kit 66073-2
Air Section Service Kit 637397
Filter / Regulator - 1/4" NPT P39224-600
Fluid Section Service Kit (Without Seats) 637401-CC
Major Air Valve Assembly 637395-3
Valve Seat - Hytrel® 96152-C
