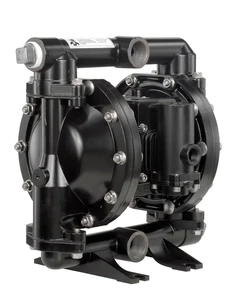

PD10A-AAP-STT ARO 1" Aluminum Metallic Expert Series Air Operated Double Diaphragm Pump

PD10A-AAP-STT ARO 1" Aluminum Metallic Expert Series Air Operated Double Diaphragm Pump

ARO
SKU:
PD10A-AAP-STT
Availability:
IN STOCK
$2,119.75
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

P/N PD10A-AAP-STT ARO 1" Aluminum Metallic Expert Series Air Operated Double Diaphragm Pump

The ARO PD10A-AAP-STT is a 1-inch Metallic Expert Series air-operated double-diaphragm pump engineered for reliable fluid handling in chemical processing, general industrial, and OEM applications requiring robust stainless steel seats paired with chemically resistant PTFE wetted components. Featuring an all-aluminum casing paired with plated steel hardware, it provides an excellent balance of durability and chemical resistance.

Its bolted construction ensures leak-free fluid containment and simplified field maintenance. This configuration is well suited for corrosive chemical transfer, solvent circulation, and handling aggressive fluids.

Application suitability should be confirmed based on fluid chemical compatibility, operating temperature, viscosity, and process conditions. Note: Aluminum-wetted models are not suitable for use with halogenated hydrocarbon solvents or food products intended for human consumption.

Operator's Manual - CCN 15207657

Sales and Engineering Data - CCN 15207772

ARO Expert and Compact Series Air Operated Diaphragm Pumps

Air Exhaust 3/4"-14 NPT (female)
Air Inlet 1/4"-18 NPT (female)
Ball Material PTFE
Center Body Material Aluminum
Diaphragm Material PTFE / Santoprene®
Displacement / Cycle @ 100 psig 0.232 gal (0.88 L)
Fluid Cap / Manifold Material Aluminum
Hardware Material Plated Steel
Material Inlet / Outlet (Female) 1 - 11-1/2 NPTF - 2
Maximum Air Inlet Pressure 120 psig (8.3 bar)
Maximum Dry Suction Lift 19 ft (5.7 m)
Maximum Flow Rate (Flooded Inlet) 52.2 GPM (197.6 LPM)
Maximum Material Inlet Pressure 10 psig (0.69 bar)
Maximum Operating Temperature 40 ° to 225 °F (4 ° to 107 °C)
Maximum Outlet Pressure 120 psig (8.3 bar)
Maximum Particle Size / Max Solids 1/8" dia. (3.3 mm)
Mounting Dimension 4" × 6.25" (101.6 × 158.8 mm)
Noise Level @ 70 psig, 60 cpm 80.6 dB(A)
Product Series Expert Series
Ratio 1:1
Seat Material 316 Stainless Steel
Weight 25.30 lb (11.50 kg) Includes 4.65 lb (2.11 kg) aluminum air motor section
