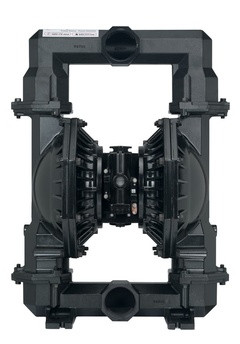

PD30A-AAP-AAA-C ARO 3" NPTF EXP METALLIC PUMP/ALUMINUM CENTER SECTION/ALUMINUM WETTED PARTS/PLATED STEEL HARDWARE/SANTOPRENE SEATS/SANTOPRENE BALLS/SANTOPRENE DIAPHRAGMS

PD30A-AAP-AAA-C ARO 3" Aluminum Metallic Expert Series Air Operated Double Diaphragm Pump

ARO
SKU:
PD30A-AAP-AAA-C
Availability:
IN STOCK
$3,986.89
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

P/N PD30A-AAP-AAA-C ARO 3" Aluminum Metallic Expert Series Air Operated Double Diaphragm Pump

The ARO PD30A-AAP-AAA-C is a metallic Expert Series 3-inch air-operated double-diaphragm pump designed for dependable, high-volume fluid delivery even at low air pressure. Its aluminum air motor, fluid caps, and manifold with carbon steel hardware, combined with Santoprene® seats, valve balls, and diaphragms, provide a durable fluid-handling configuration for demanding industrial and process applications.

Built for reliable pneumatic operation, the Expert Series design incorporates ARO's patented SimulShift™ air valve technology to help avoid stalling and Quick Dump™ check valves that divert cold exhaust air away from ice-prone components to help reduce freezing and downtime. Its bolted construction and serviceable air and fluid sections support dependable operation and convenient maintenance, making the pump well suited for fluid transfer, filling, recirculation, batching, and other industrial process applications.

Application suitability should be confirmed based on the specific fluid, concentration, temperature, viscosity, chemical compatibility, solids content, and operating conditions. Aluminum wetted components must not be used with halogenated hydrocarbon solvents that may react with the aluminum, and models containing aluminum wetted parts must not be used with food products intended for human consumption. Maximum temperature limits are based on mechanical stress only, and certain chemicals can significantly reduce the maximum safe operating temperature.

Operator's Manual - CCN 15227648

Sales and Engineering Data - CCN 15227747

ARO Expert and Compact Series Air Operated Diaphragm Pump

Air Exhaust (Female) 1-1/2 - 11-1/2 NPT
Air Inlet (Female) 3/4 - 14 NPTF - 1
Air Supply Filtration Requirement 50 microns max
Ball Material Santoprene®
Center Body Material Aluminum
Diaphragm Material Santoprene®
Displacement / Cycle @ 100 psig 2.8 gal (10.6 L)
Fluid Cap / Manifold Material Aluminum
Hardware Material Carbon Steel
Material Inlet / Outlet (Female) 3 - 8 NPTF - 1
Maximum Air Inlet Pressure 120 psig (8.3 bar)
Maximum Dry Suction Lift 14 ft (4.2 m)
Maximum Flow Rate (Flooded Inlet) 275 gpm (1041 lpm)
Maximum Material Inlet Pressure 10 psig (0.69 bar)
Maximum Outlet Pressure 120 psig (8.3 bar)
Maximum Particle Size / Max Solids 3/8" dia. (9.5 mm)
Maximum Temperature Limits -40°–225°F (-40°–107°C) (limited by Santoprene®)
Noise Level @ 70 psig, 50 cpm 83.0 dB(A)
Product Series Expert Series / Metallic
Ratio 1:1
Seat Material Santoprene®
Weight 129.6 lb (58.8 kg)
ACCESSORIES / SERVICE:
Air Line Connection Kit 66109
Air Section Service Kit 637421
Continuous Muffler 67263
Fluid Section Service Kit (Without Seats) 637303-AA
Major Air Valve Assembly 637374-2
Valve Seat - Santoprene® 94104-A
