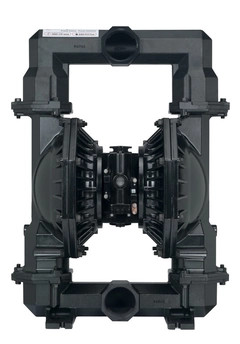

PD30A-AAP-GGG-C ARO 3" Aluminum Metallic Expert Series Air Operated Double Diaphragm Pump

PD30A-AAP-GGG-C ARO 3" Aluminum Metallic Expert Series Air Operated Double Diaphragm Pump

ARO
SKU:
PD30A-AAP-GGG-C
Availability:
IN STOCK
$4,335.60
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

P/N PD30A-AAP-GGG-C ARO 3" Aluminum Metallic Expert Series Air Operated Double Diaphragm Pump

The ARO PD30A-AAP-GGG-C is a 3-inch metallic Expert Series air-operated double-diaphragm pump designed for dependable, high-volume fluid transfer in industrial, process, and demanding fluid-handling applications. Featuring a durable aluminum construction combined with Nitrile diaphragms, valve balls, and seats, it provides a strong balance of durability and versatility for handling petroleum-based fluids, oils, and general industrial liquids.

Built for reliable pneumatic operation, this pump features ARO's patented SimulShift™ "unstallable" air valve and Quick Dump™ exhaust technology to eliminate stalling and prevent cold-weather freezing. Its bolted, stall-resistant construction supports reliable, leak-resistant operation and convenient serviceability, offering high-volume delivery even at low air pressure. This pump is well-suited for transfer, filling, recirculation, batching, and other operations where dependable performance and ease of maintenance are essential.

Application suitability should be confirmed based on the specific fluid, temperature, viscosity, chemical compatibility, solids content, and operating conditions.

Operator's Manual — CCN 15227648

Sales and Engineering Data - CCN 15227747

ARO Expert and Compact Series Air Operated Diaphragm Pumps

Air Exhaust 1-1/2"-11-1/2 NPT
Air Inlet 3/4"-14 NPTF-1
Air Supply Filtration Requirement 50 microns max (recommended air line filter)
Ball Material Nitrile
Center Body Material Aluminum
Diaphragm Material Nitrile
Displacement / Cycle @ 100 psig 2.8 gal (10.6 lit)
Fluid Cap / Manifold Material Aluminum
Hardware Material Carbon Steel
Material Inlet / Outlet 3 - 8 NPTF - 1
Maximum Air Inlet Pressure 120 psig (8.3 bar)
Maximum Dry Suction Lift 14 ft (4.2 m)
Maximum Flow Rate (Flooded Inlet) 275 gpm (1041 lpm)
Maximum Material Inlet Pressure 10 psig (0.69 bar)
Maximum Operating Temperature 10 ° to 180 °F (-12 ° to 82 °C) (limited by Nitrile seat, ball, and diaphragm specs)
Maximum Outlet Pressure 120 psig (8.3 bar)
Maximum Particle Size / Max Solids 3/8” dia (9.5 mm)
Mounting Dimension 10-5/32” x 12-1/16” (258 mm x 306 mm)
Noise Level @ 70 psig, 50 cpm 83.0 dB(A)
Product Series Expert Series / Metallic
Ratio 1:1
Seat Material Nitrile
Weight 129.6 lbs (58.8 kgs)
ACCESSORIES:
FLUID END SERVICE KIT (NITRILE) 637303-GG
VALVE SEAT GEOLAST® 3" 94104-G
AIR END SERVICE KIT (EXP/METALLIC) 637421
ARO SERIES 3000 3/4 FILTER/REGULATOR 5 P39454-614
